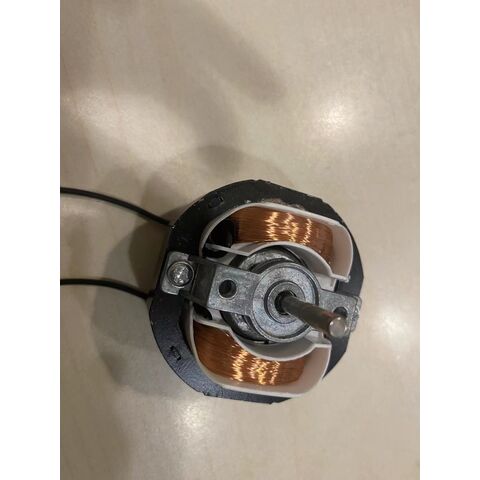

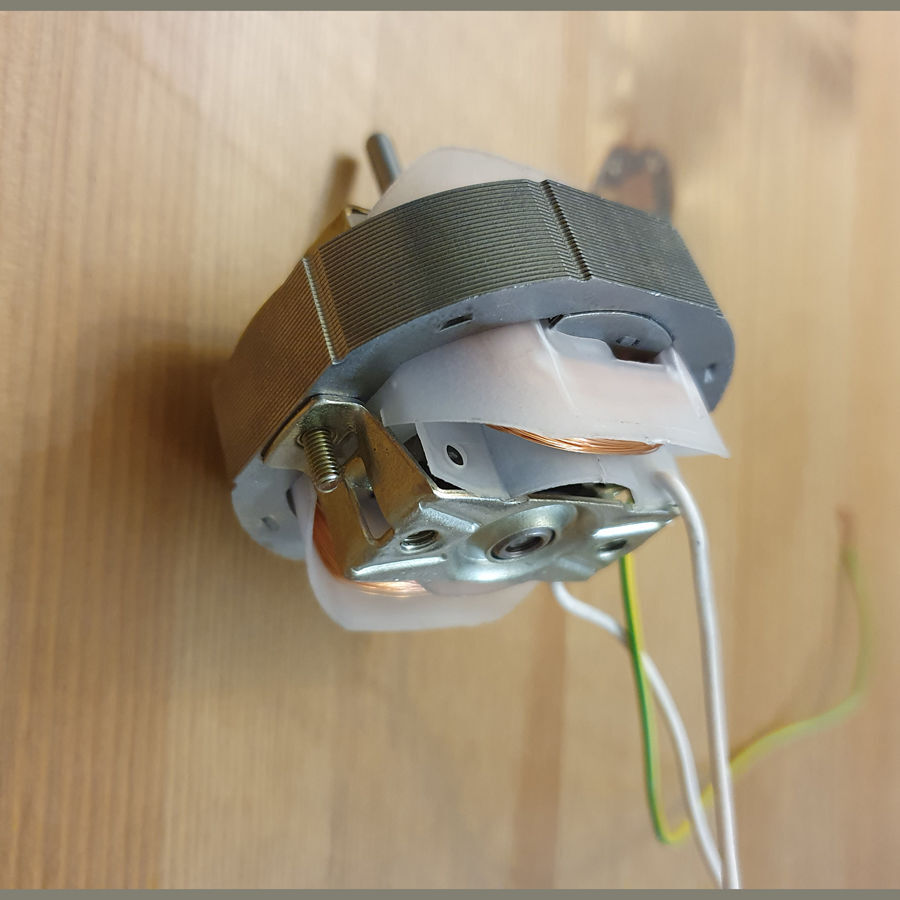

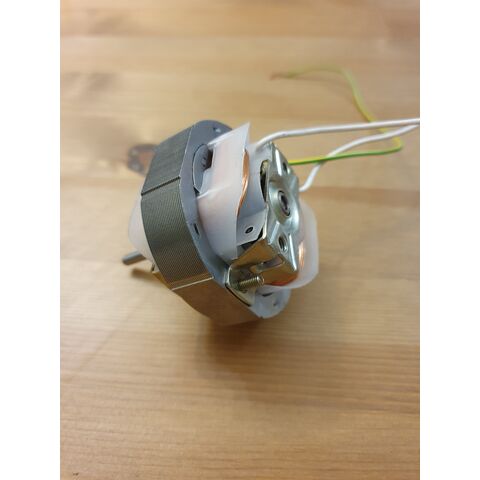

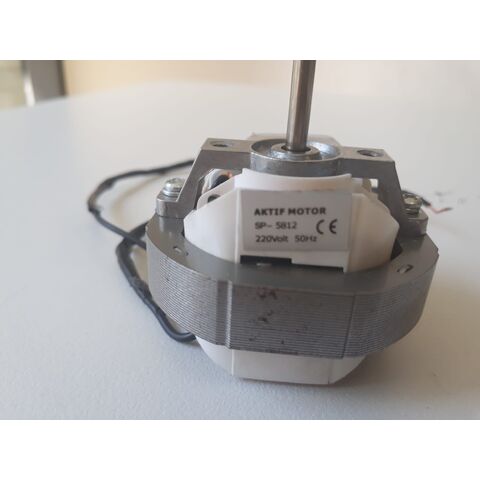

The Introduction Of YJ58 Motor

　　YJ58 motors are single phase 2 or 4 poles asynchronous motors. The voltage is 220V, 50/60Hz. We can also supply other fan motors with different voltages and frequencies according to customers′special requirements.

　　They are widely used in stirrer, fan heater, dishwasher, automatic hand dryer, air conditioning water pump, humidifier, exhauster, air cleaner, cooker hood, ventilation equipment etc.

　　1. Characteristics:

　　The motors are characterized by little noise, credible running, stable performance, high efficiency and energy saving.

　　2. Technical Specifications:

　　1. The diameter of rotor: 58mm

　　2. Thickness: 12mm, 16mm, 20mm

　　3. Voltage: 220V, 50/60Hz

　　5. Speed Rated: 2600-2750rpm

　　6. Rotation: Clockwise or counterclockwise

　　7. The mode of operation: S1 continuous operation

　　8. Insulation Class: B

　　9. Ambient Temperature: -30℃ to 50℃

　　3. Payment Terms: 30% T/T deposit, 70% T/T before shipment

1. Performance Parameter
